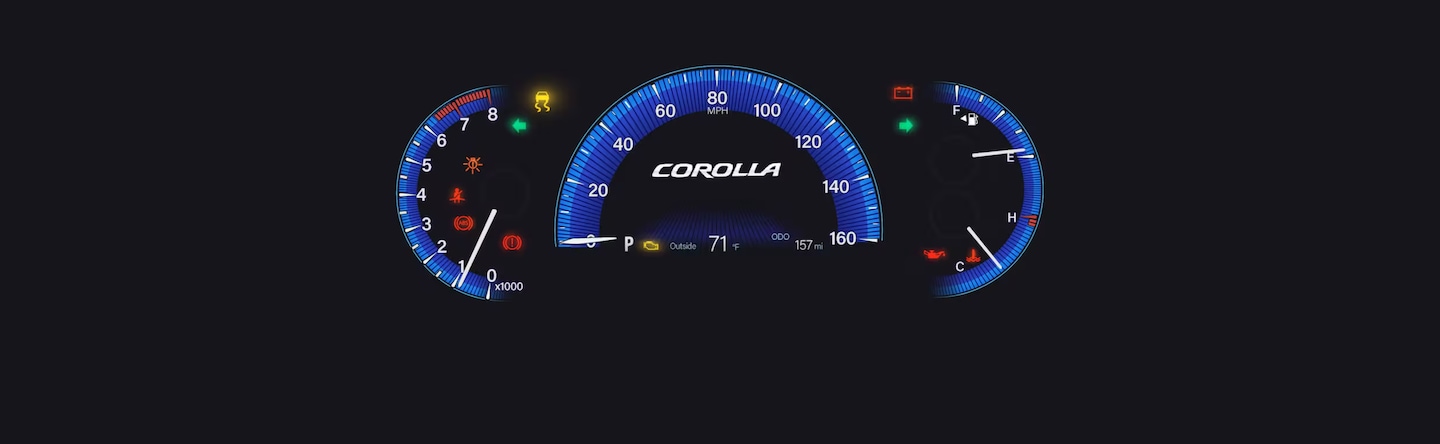

Dashboard panel for illustration purposes-only

Charging System Warning Light

Stop the vehicle immediately.


Warning light detail:This indicates a malfunction in the vehicle's charging system.

Correction procedure: If necessary, perform maintenance.

Maintenance Required Reminder Light

Indicates that maintenance is required according to the driven distance on the maintenance schedule.


Warning light detail: Illuminates for about 3 seconds and then flashes for about 15 seconds approximately 4500 miles (7200 km) after the maintenance data has been reset.

Correction procedure: If necessary, perform maintenance.

Maintenance Required Reminder Light

Indicates that maintenance is required according to the driven distance on the maintenance schedule.


Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately. Indicates a malfunction in: The ABS; or The brake assist system.

Low Engine Oil Pressure Warning Light

Stop the vehicle immediately.


This warning indicates the possibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Indicates that the engine oil pressure is too low.

Tire Pressure Warning

Indicates that maintenance is required according to the driven distance on the maintenance schedule.


When the light comes on: Low inflation pressure. Correction procedure: Adjust the tire inflation pressure. The light will turn off after a few minutes. If the light does not turn off even after the tire inflation pressure is adjusted, have the system checked by your Toyota dealer.

Check Engine Light

Also known as Malfunction Indicator Lamp. Have the vehicle inspected immediately.


Failing to investigate the cause of this warning may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately.

    Indicates a malfunction in:
  • The electronic engine control system;
  • The electronic throttle control system; or
  • The electronic automatic transmission control system.
  • Open Door Warning Light

    Indicates that a door or the trunk is not fully closed.


    Correction Procedure: Check that all doors and the trunk are closed.

    Open door warning buzzer: The open door warning buzzer sounds to alert the driver that one or more of the doors or trunk is not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).

    Low Fuel Level Warning Light

    Indicates low fuel in engine lines.


    Indicates that remaining fuel is about 2.8 gal. (10.5 L, 2.3 lmp. gal.) or less

    Correction procedure: Refuel the vehicle.

    Low Windshield Washer Fluid Warning Light

    (vehicles without multi-information display)


    Low level of washer fluid

    Correction procedure: Fill the tank.

    "TRAC OFF" Indicator

    Indicates that the Traction Control is off.


    If the vehicle gets stuck in fresh snow or mud, the TRAC/VSC systems may reduce power from the engine to the wheels. You may need to turn the system off to enable you to rock the vehicle in order to free it. To turn the TRAC system off, quickly press and release the button. The TRAC OFF indicator should come on. Press the switch again to turn the system back on.

    Front Fog Light Indicator

    Indicates that the Fog Lights are turned on.


    If the indicator flashes faster than usual, check that a light bulb in the front or rear turn signal lights has not burned out.

    Turn Signal Indicator

    Indicates that the turn signal is on.


    Fog Lights are low-mounted lights aimed at the pavement directly in front of the vehicle. These lights are designed to shine "under" the fog rather than into it, and are therefore less prone to reflect light beams back into the driver's eyes.

    Headlight High Beam Indicator

    Indicates that the headlight high beams are on.


    High beam headlamps aid driver visibility by projecting a bright beam far down the road. They should only be used in situations where they cannot blind oncoming traffic. Typical uses would be in remote areas such as mountains or deserts.

    SRS Airbag On-Off Indicator

    Indicates that the airbag is activated/deactivated.


    Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and activates or deactivates the devices for the front passenger. The AIR BAG ON/AIR BAG OFF light illuminates to keep the driver and front passenger aware of the system's status.

    SRS Warning Light

    Have the vehicle inspected immediately.


    Failing to investigate the cause of this warning may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately.

    • Indicates a malfunction in:
    • The SRS airbag system;
    • Front passenger occupant classification system; or The seat belt pretensioner system.

    Security Indicator

    Indicates that proper key operation.


    This indicator light flashes after the key has been removed from the engine switch to indicate that the system is operating. The indicator light stops flashing after the registered key has been inserted into the engine switch to indicate that the system has been canceled.

    Traction Control Light

    Have the vehicle inspected immediately.


    If one or more wheels begin to spin (slip), the slip indicator flashes to indicate that Vehicle Stability Control (VSC) and/or Traction Control (TRAC) are operating in order to regain traction.

    • If the light stays on, it could indicate a malfunction in:
    • The VSC system; or
    • The TRAC system

    Smart Key Indicator

    Indicates that a Smart Key-equipped vehicle is ready to start using the ENGINE START STOP button.


    Cruise Control Indicator: Indicates that the Cruise Control is on.

    Cruise Control is a feature designed to maintain a set speed on the open road, without requiring the driver to hold down the accelerator pedal. The control stalk has a master ON/OFF switch, a speed SET function, and a +/- function that provides moderate acceleration or coasting/deceleration.

    Cruise Control Set Indicator




    Indicates that the Cruise Control has been set to a selected speed.

    Driver's/Front Passenger's Seat Belt Reminder Light

    Warns the driver to fasten his/her seat belt.


    Correction procedure: Fasten the seat belt.

    BSM Outside Rear View Mirror Indicators




    The available Blind Spot Monitor (BSM) switch illuminates when the system is turned on. When a vehicle is detected in a blind spot, the outside rear view mirror on that side of the vehicle illuminates. If the turn signal lever is operated when a vehicle is in a blind spot, the outside rear view mirror indicator flashes.

    Brake System Warning Light

    Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.


    This warning indicates a possible problem in the brake system. Immediately stop the vehicle in a safe place and contact your Toyota dealer.

    • Low brake fluid
    • Malfunction in the brake system

    This light also comes on when the parking brake is not released. If the light turns off after the parking brake is fully released, the system is operating normally.

    Blind Spot Warning Light (Comes On)

    Have the vehicle inspected by your Toyota dealer immediately.


    Indicates a malfunction in the Blind Spot Monitor.

    Failure to investigate the cause of this warning may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately.

    Power Steering Warning Light (Comes On)

    Have the vehicle inspected by your Toyota dealer immediately.


    Indicates a malfunction in the EPS system.

    Failure to investigate the cause of this warning may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately.

    Eco Driving Indicator




    During Eco-friendly acceleration (Eco driving), Eco Driving Indicator Light will turn on. If acceleration exceeds the Zone of Eco Driving, or the vehicle is stopped, the light turns off. The indicator light will not operate if the shift lever is in any position other than D; the paddle shifters are used (if equipped); the vehicle speed is approximately 80 mph (130 km/h) or higher. The Eco Driving Indicator can be activated or deactivated. Consult your owner's manual for more details.

    High Engine Coolant Temperature Warning Light

    Stop the vehicle immediately.


    The right most segment of the engine coolant temperature display flashes to indicate that the engine is almost overheating.

    This warning indicates the possibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Toyota dealer.

    Tow/Haul Indicator




    Use TOW/HAUL Mode when pulling a trailer or hauling a heavy load. Press the "TOW/HAUL Mode" switch. The indicator will come on. Press the switch once more to cancel the mode.

    Auto LSD Indicator




    The AUTO LSD system aids traction by using the traction control system to control engine performance and braking when one of the rear wheels begins to spin. The system should be used only when one of the rear wheels spinning occurs in a ditch or rough surface. Press the "VSC OFF" switch briefly. At this time, the "AUTO LSD" indicator will come on. To turn off the system, push the switch again.

    A-TRAC Indicator Light




    Indicates that the Active Traction Control (A-TRAC) system has been activated. The Active Traction Control system automatically helps prevent the spinning of four wheels when the vehicle is started or accelerated on slippery road surfaces.

    Part-time 4WD models: Stop the vehicle, shift the lever to N and shift the Front-Wheel Drive control lever into L4.

    Full-time 4WD models: Stop the vehicle, shift the lever to N and then push and turn the 4WD control switch to L4L. Press the "A-TRAC" switch to activate the system. At this time, the "A-TRAC" indicator will come on. To cancel the system, push the switch again.

    Center Differential Lock Indicator Light




    Indicates that the center differential has been locked (full-time 4WD models).

    Crawl Control Indicator Light




    Indicates that Crawl Control (CRAWL) is active. Crawl Control allows travel on extremely rough off-road surfaces at a fixed low speed without pressing the accelerator or brake pedal. It minimizes loss of traction or vehicle slip when driving on slippery road surfaces, allowing for stable driving. The Crawl Control indicator comes on and the slip indicator flashes when operating.

    Downhill Assist Indicator




    With the Downhill Assist Control (DAC) system, the vehicle is able to descend a steep hill while maintaining a constant low speed of about 3 mph (5 km/h) without brake pedal operation. To operate the system, press the "DAC" switch. The Downhill Assist Control (DAC) system indicator will come on to show that the Downhill Assist Control system is activated. Pressing the switch again turns the system off.

    4WD Indicator Light




    The 4WD indicator comes on when the H4, N or L4 mode is selected.

    High Speed 4WD Indicator Light




    Indicates that high-speed 4WD has been activated.

    Low Speed 4WD Indicator Light




    Indicates that low-speed 4WD has been activated.

    Multi-Terrain Select




    Indicates that the Multi-terrain Select system is active. The Multi-terrain Select system has four terrain modes. When a terrain mode is selected in accordance with terrain conditions, engine power and the Active Traction Control system are controlled to enhance off-road drivability. Additionally, guidance messages such as transfer mode selection advice are displayed on the accessory meter to assist the driver in operating the vehicle.

    RSCA Off Indicator Light




    Indicates that the Roll-sensing Side Curtain Airbags (RSCA) have been turned off. This switch should be used only in a situation where the inflation is not desired (such as during extreme off-road driving). Press and hold the "ON/OFF" button for a few seconds.

    Vehicles without Smart Key System: The "RSCA OFF" indicator turns on (only when the engine switch is in the "ON" position). The roll-sensing function for the curtain shield airbags and seatbelt pretensioners will turn back on automatically each time the engine switch is turned to the "ON" position.

    Cruise Control Indicator Light

    Indicates that the Cruise Control is on.


    Cruise Control is a feature designed to maintain a set speed on the open road, without requiring the driver to hold down the accelerator pedal. The control stalk has a master ON/OFF switch, a speed SET function, and a +/- function that provides moderate acceleration or coasting/deceleration.

    If the cruise control indicator comes on in yellow: Indicates a malfunction in the cruise control system. Have the vehicle inspected by your Toyota dealer Immediately.
